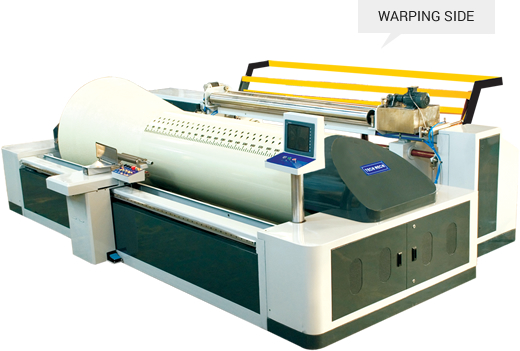

SERVOTECH-130 Advanced Computerised Sectional Warping Machine

Triple Servo Drive System
  • Table First Section Position Automatically.
  • Actual Length Measurement.
  • Next Auto Section Position.
  • Yarn Brake Status on Display.
  • Constant Linear Warping Speed Control.
  • Constant Linear Beaming Speed control.
  • Lease length normal lease or 7 lease.
  • Pre-difined auto stop 1st lease / 2 nd. lease and warp length
  • On screen help menu to guide operator.
  • Computer compatibles for software up-gradation.
  • Mis-Operating trouble shooting on display.
  • Electrical component failure status.
  • Motors overload status on display.
  • Auto stop power failure status on display.
  • Variable frequency A.C. Drive data on display.
  • Drum auto stop on lease hole.
  • Multi beam facility.
  • Beam advance stop to avoid an accident.
  • Servo Motor and Drive online Status show on Display.
  • Yarn Break Current Status Storage on Display
  • Drum Actual Maximum Length on Display.
  • Lost End Memory with Precise Stop During Beaming.
  • Warp Beam Cut Length by Auto.
  • Auto Waxing On/Off During Beaming.
  • Waxing Speed synchronized with yarn speed.
  • Auto Static On/Off During Warping.
  • Up to 10 Different Beam Data Memorised on Display.
  • All Interlock Facility to Avoid an Accident.
  • Electronic Sensor for Safety Device on Beaming Side.
  • Evener Roller Enable/ Disable from Display.
  • Beam Direction Selection forward / Reverse from Display.
  • Actual Traverse Motion Position on Display.
  • Creel Tension very by Warping Table Load Cell.
  • Beam Tension Control by Load Cell Through Proportional Valve.
  • Monitoring PLC Input and Output Status on Display.
  • All Communication Status on Display.
  • Avail Ethernet Facility.
  • Beam Data save in USB Storage.
  • Graphical Display of All Screens.
  • Fixed cone,Metallic drum,dynamically balanced.Drum Circumferences standard 3.0 mtr.
  • 15 Ethernet graphical touch screen colour display for desired process data.
  • A.C. variable frequency controldrive for warping and beaming motor.
  • Triple A.C. DigitalServo System for

    a) First Servo for movement of warping table and synchronous speed as per cone angle by ball screw and linear guide.

    b) Second Servo for withdrawalof evener roller and reed as per the built up yarn with ball screw and linear guide.

    c) Third Servo for head stock traverse during warping & beaming.

  • Evener warp sheet is maintained by the pneumatic press roller across width of the yarn section.
  • 3 Roll DigitalWaxing Device with AC Drive and Motor with Wax Tank and Pump.
  • Safety device with optical sensing for instant stopping.

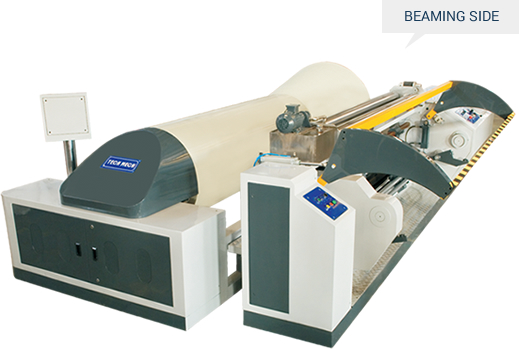

  • Separate beaming section.
  • Uniform brake tension automatically maintained & displayed on screen from start I finish of beam as per set value by proportional controlvalve measuring from load cell system.
  • Section Yarn tension controlled by load cell on traverse table (When use TC-8 auto tension controlled creel)
  • Force Cooling For Blower for Disc.
  • Pneumatic beam pressing device for 2200 mm to 2800 mm.
  • UPS for Power Fail Back up of Beam Data.
  • Standard Beam Barrel Length Working Width +600mm.
  • We Provide Head Stock Traverse Railand one set Beam Adaptor.
  • Hydraulic disc brake for instant stop.
  • Printer for Beam Data Sheet.
