Techmechwrap

Capacity (Kg) : 1000 Kg at 600 mm load centre
Load Center : 600 mm
Lowered Height (mm) : 90
Lift Height (mm) : 2500 mm

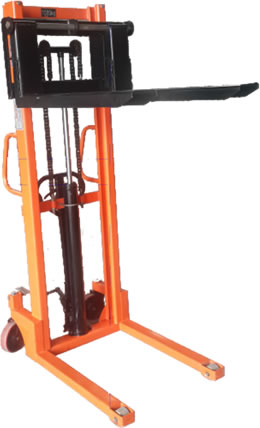

Specially suitable for cloth rolls, pallet & raw material transporting.
Fork Size :600mm width x 1000 mm(ADJUSTABLE)
Width over forks : 610 mm
Fork shut height : 90 mm
Turning radius : 1340 mm
Steering wheel : 180 mm dia (2 nos.)
Rear wheel : 80 dia (2 Nos.)
Hydraulic System : Hand and Foot operated double acting hydraulic pumps with One vertical single acting cylinder with hard chrome piston
