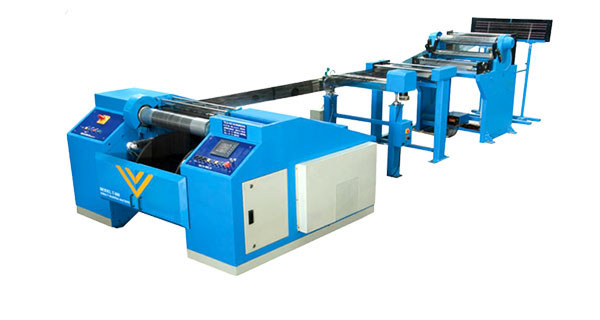

Mini Warping Machines Mini Warping Machines

  • Working with of warping machine: 532mm & Beam Flange Ǿ 21” & 30”.
  • Minimum barrel Ǿ 200mm.
  • Warping speed steplessly selectable from 100 upto 600Mtr/Miniute.
  • Maximum total yarn tension 600 N.
  • Hydraulic Brake for emergency stop & Auto stop incase of power failure & yarn brake.
  • Beam donning doffling hydraulically & Beam chucking by motorised.
  • Single motor for Beaming.
  • Electronic brake for measuring roller.
  • Ceramic eyelet board stand.
  • Yarn inspector warp stop motion.
  • Reed Device: adjustment of beam width by manual operation.
  • Oscillation of beam width during process automatically.
  • 3 Nos. Static Eliminator to absorb yarn statics at required position.
  • Oiling: The speed can be adjustable by speed adjusting motor.
  • Oiling pump for supply from auxiliary tank automatically.
  • Yarn fixing device: To prevent yarn from vibrating.
  • Modem connectivity for remote trouble shooting related to PLC.
  • Tension Control of yarn by changing the twin roll’s angle by servomatic system.
  • Tension measuring parts to show actual yarn tension by load cell.

Operating Data Display, Current Actual Yarn Speed, Current Length in Meters, Current Circumference of Beam, Selection of Stopping Condition in Meter, Current Machine Status Current Yarn Tension, No. of Revolution of Beam, No. of Total Stop According to different type stops.
