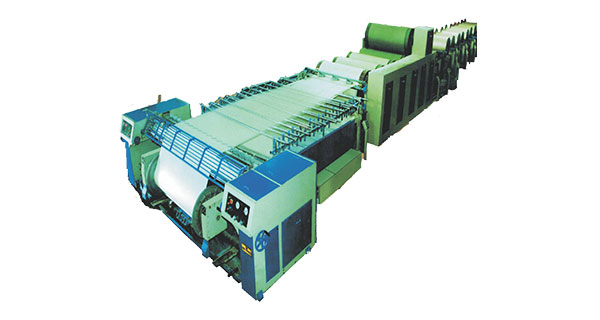

Sizing Machines Sizing Machines

The head stock is revolutionized keeping in mind the evolution of textile technology. Multi features composed in one sturdy design to deliver efficient beaming of all types of yarn under constant tension at any speed.

  • Beam winding in both directions to meet the requirement of shuttle less loom with double beam.
  • The winding tension is auto controlled which is synchronized with the main drive of the machine to control stretch of yarn.
  • Strong beam carriage mounted on triple shaft with motorized traverse.
  • The lease section is designed to give a perfect 6 yarn expansion from the cylinder section to head stock.
  • Motorized comb movement with a vertical oscillatory movement to reduce dent abrasion.
  • Traversing Nip roll facilltating high quality beams for Terry Fabric Weaving.
  • Rubber coated yarn drag roll with double nip arrangement. Pneumatic lifting and lowering of Nip Rolls.
  • Available in various models to suit any weavers beam

Liquor Consumption

The liquor level in the size box is measured with a maintenance free sensor, unsusceptible to contamination and regulated to the specified level. This measurement serves to measure liquor consumption and calculate the actual size pick-up.

Size Box Heating

Two heating systems are matched optimally to one another. The indirect heating in the double bottom compensates the heat loss by radiation and the direct steam heating responds quickly and effectively. High circulation and low liquor level ensure an homogeneous liquor

True Wet Splitting

With a high yarn density in the size box, there is less dust and less warp yarn hairiness when working with true wet splitting. A basic prerequisite for this is the large dimensioned, steam heated deflection rollers.

Drive modulated to facilitate fine beam tension control. Beam tension can be regulated depending on the yarn count.

Two Point DC Drive

  • Full shaft drive till size box to maintain machine speed.
  • Drive transfer using positive infinite variable (PIV) to stabilize overall speed.
  • Highly efficient in operation and designed for sustained running.

Multi Point DC Drive

  • Individual DC motor drive to all sections.
  • Precise synchronization of all motors maintained by the Master Control Panel.
  • Optimized ratio setting by control unit.
  • Individual AC motor drive for all sections.
  • Overall machine synchronization maintained by one master drive.
  • Closed Loop control by PLC.
  • Main Panel Display with a Touch Screen TFT for easy operation.

Multi Cylinder Dryer Section

  • Custom Designed drying chamber depending on the maximum number of running ends.
  • Heavy Duty vibration free, low built frames, designed for better airing of yarn.
  • Available in various types of split drying arrangement with multiple size boxes.
  • No wet split guide rolls between the size box and cylinder to avoid broken ends and patches of liquid.

Size Box

  • Parametrically designed depending upon the type of yarn quality.
  • Double immersion and double squeezing arrangement.
  • Linear squeezing pressure applied for even size pick-up.
  • Integrated size circulation and overflow mechanism to maintain linear viscosity of size liquid.
  • Sizing roller and drawing roller are singly driven by motor in a multi motor system and by tension controllers (PIV) in a two point system.
  • Auto control system for varying the squeezing pressure according to the machine speed..

Sectional Warper Beam Let Off Drive

  • Ideal device for unwinding the sectional warper beam.
  • This is designed to render constant tension using.
  • Pneumatic air regulators and pneumatic braking system.
  • Sturdy structures for a vibration free working.
  • H type telescopic vertical creel frame to accommodate 4 warp beams.
  • Also available in horizontal design.
  • Designed to maintain constant unwinding tension overall.
  • Pneumatic/mechinical auto braking system for individual warp beams.
  • Magazine creel with rails.
