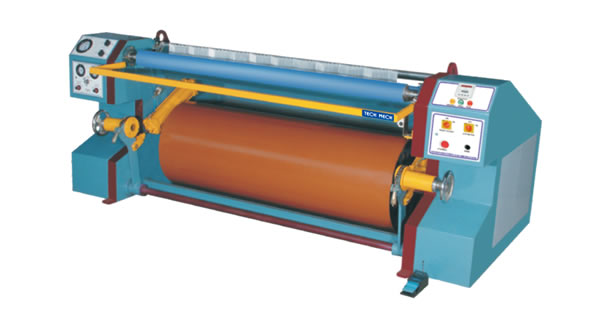

T-500 & T-500C Drum Driven Direct Warping Machine {AC- Variable)

  • Beam Working width 54" , 60" ,72" ,80",84 & Flange Dia 28",30", 32", 36"
  • Balanced steel drum with pneumatic disc brakes for stopping the machine efficiently and instantly.
  • Beam loading and unloading easily by pneumatically arrangement with levers.
  • Expanding zig-zag comb behind guide roll.
  • Guide roll (hard chrome plated) balanced and fitted with ball bearing.
  • Pre set counter meter with auto stop arrangement on select length.
  • Beam pressing by pneumatic pressing system.
  • Electrical safety device on beam side.
  • Ergonomically designed for easy operation.
  • Suitable for beam dyeing
  • Slow speed with desired density of warp.
  • Flange dia 10" to 16" (Customised)
