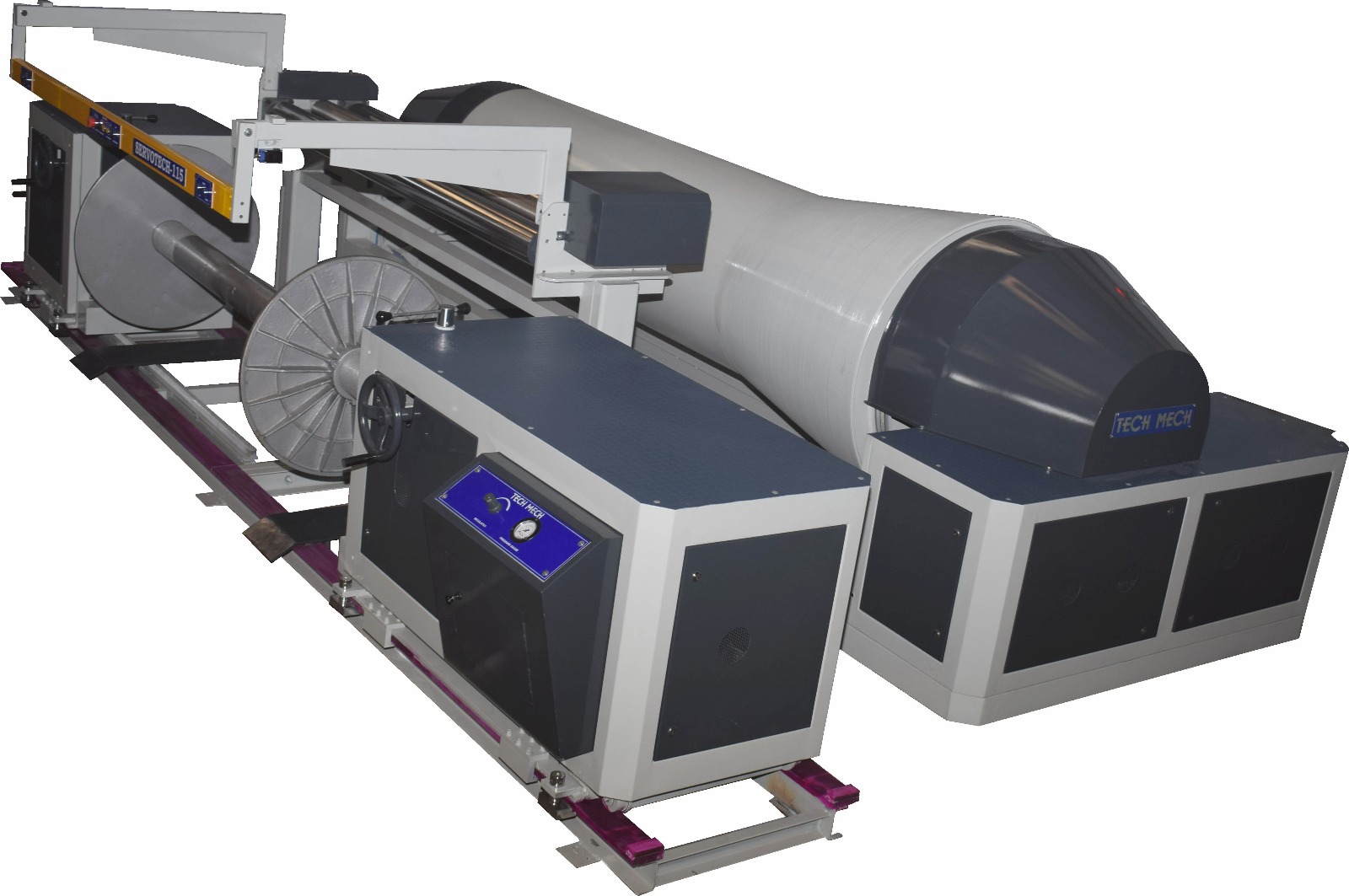

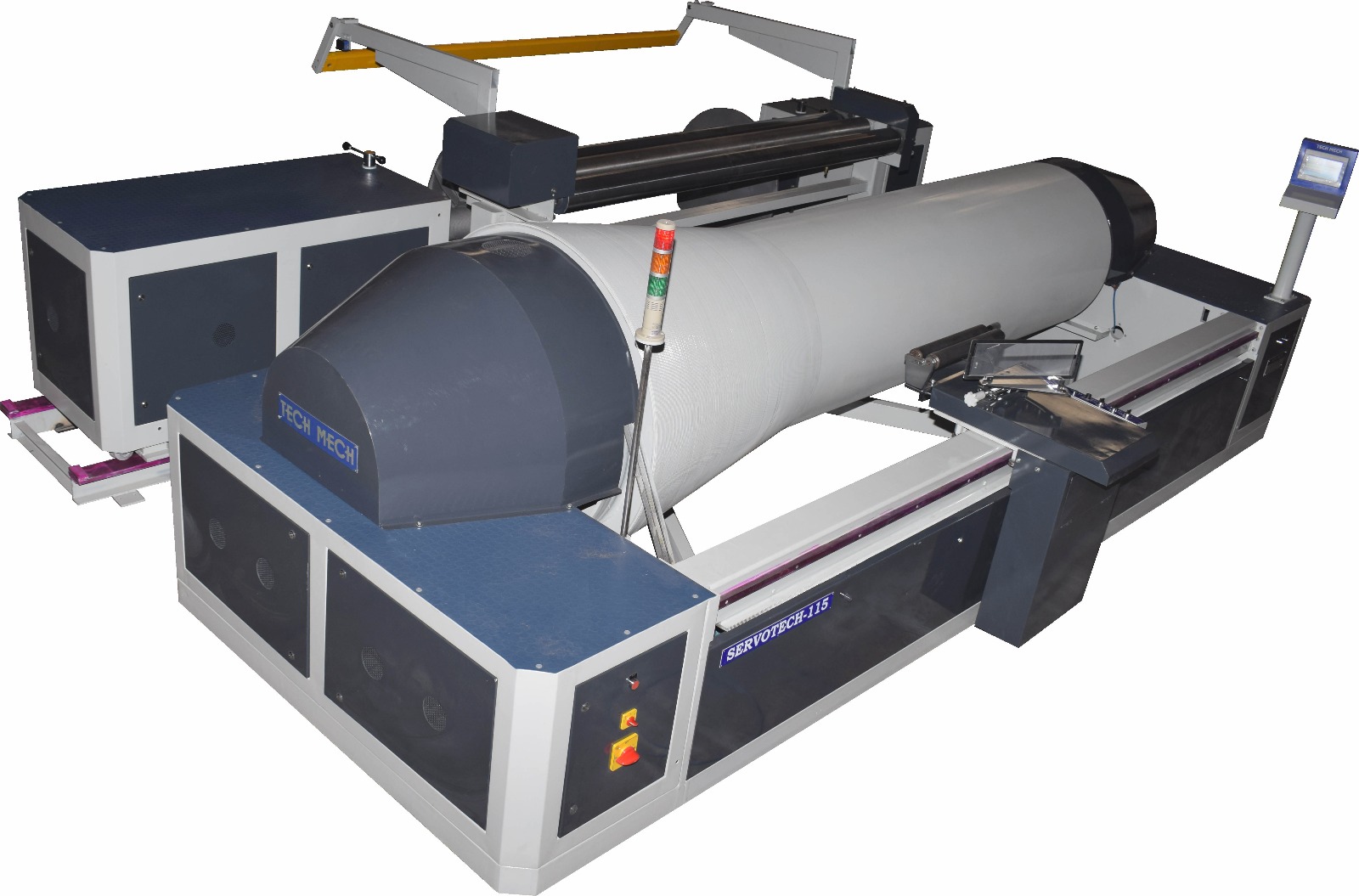

SERVOTECH – 115 Computerised Sectional Warping Machin

  1. Working Width 2200, 2800, 3000, 3600 & 4000
  2. Beam Flange Dia 800 -1000
  3. Drum Circumference 2.5 mtr.
  4. Cone Degree 7, 9 & 11
  5. Section Width 300 mm
  6. Max. Warping Speed 10 - 600 mtr/min.
  7. Beaming Speed 10 - 100 mtr/min.
  • Table First Section Position Automatically.
  • Actual length Measurement. Auto Section Position.
  • Yarn Brake and Memory.
  • Constant linear Warping Speed Control.
  • Constant linear Beaming Speed Control.
  • lease length Normal lease or 7 lease.
  • Pre-Difined Auto Stop 1st lease /2 nd.lease and warp length.
  • On Screen Help Menu to Guide Operator.
  • Computer Compatibles for Software Up-gradation.
  • Mis-Operating Trouble Shooting on Display.
  • Electrical Component Failure Status.
  • Motors Overload Status on Display.
  • Auto Stop Power Failure Status on Display.
  • Drum Auto Stop on lease Hole.
  • Variable Frequency A.C. Drive Data on Display.
  • MultiBeam Facility.
  • Beam Advance Stop to Avoid an Accident
  • Drum Actual Maximum length on Display.
  • lost End Memory with Precise Stop During Beaming.
  • Warp Beam Cut Length by Auto.
  • Auto Waxing ON/OFF During Beaming.
  • Waxing Speed Synchronized with Yarn Speed.
  • Auto Static ON/OFF During Warping.
  • All Interlock Facility to Avoid an Accident.
  • Electronic Sensor for Safety Device on Beaming Side.
  • Actual Traverse Motion Position on Display.
  • Monitoring PLC Status on Display.
  • All Communication Status on Display.
  • Beam Data save in USB Storage..
  • A.C. variable frequency control drive for warping and beaming motor.
  • Stepless system with synchronous speed of table with drum by servo motor & drive.
  • 7" graphical touch screen colour display for desired process data.
  • Programmable Logic Controlller (PLC) with exclusive functions.
  • Engaging & disangaging of beam by manually.
  • Fixed cone, Metallic drum, dynamically balanced.Drum Circumferences standard 2.5 mtr.
  • Automatic distance maintained between drum to traverse table and reed by auto mechanically.
  • Separate beaming section.
  • Hydraulic disc brake for instant stop.
  • Force Cooling for Blower for Disc.
  • UPS for Power Fail Back up of Beam Data.
  • Standard Beam Barrel Length Working Width +600mm.
  • We Provide Head Stock Traverse Rail and one set Beam Adaptor.
  • Three Roller Waxing Device.
  • Pneumatic beam pressing device for 2200 mm to 2800 mm.
  • Static Eliminator on table and lease reed stand.
  • Ball Screw for table traverse.
  • Eyelet Board.
  • Section width more than 300mm.
  • Circular pump for waxing.
  • Section tension controlunit.
  • Drum sheet thickness 12 mm on your request.
