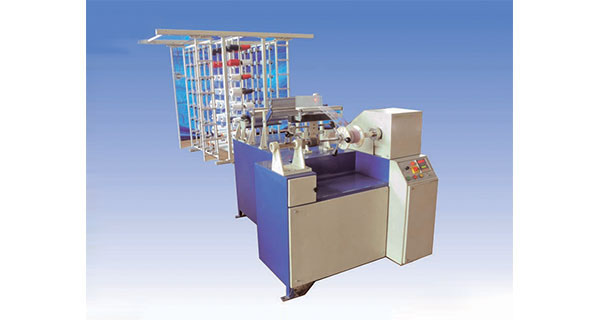

Model: AI-210 Spool Winding Machine

  • Sturdy heavy duty structure
  • Automatic constant surface speed.
  • Digital preset counter with memory ensure extra warp length.
  • Stepless variable warp speed upto 220mtrs./min.
  • Drop pins type stop motion.
  • Slow start with adjustable acceleration.
  • Floating pressure roller.
  • Movable draw out frame, Adjustable distance between tensioner & package, Cam type motion, Porcelain eyelets and thread guides. Stop motion indicator lamp in each vertical row, restart facility for warping machine. Zinc plated package holder rod with rubber flower.
  • Beam Size: 350 Dia x 250mm
  • Speed: Upto 220 Mtrs/min.
  • Power Supply: 2HP DC/AC, 1 Ph.
  • Model: SW 500
  • Beam Size: 500 Dia x 470 mm
  • Speed: Upto 180 Mtrs/min.
  • Power Supply: 5 HP DC/AC, 1 Ph.
  • Antistatic Device
  • Oiling/Waxing Device
  • No ends of Available: 128/160/192/256/320
  • Central Distance: Vertical 220mm, Horizontal 220mm
  • No of Vertical Rows: 8
  • Length: Depends upon No. of ends.
